Fluke | Digital Multimeter

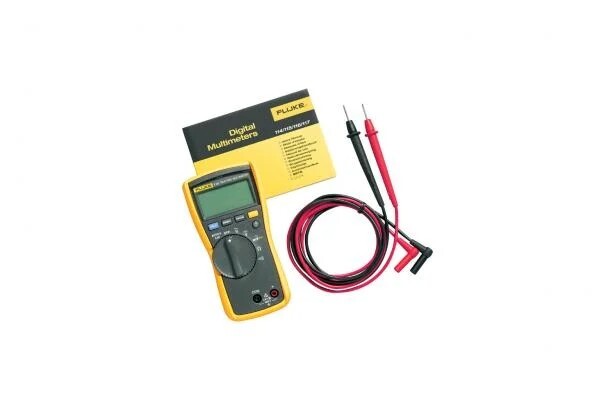

Fluke 114 Electrical Multimeter

The Fluke 114 Electrical Multimeter is a compact, True-RMS digital multimeter designed for professional electricians and technicians. It offers accurate voltage, current, resistance, and continuity measurements, along with features like AutoVolt for automatic AC/DC voltage selection and low input impedance to prevent false readings due to ghost voltage. With a 6000-count display and a large white LED backlight, it's ideal for troubleshooting in various environments. 1.

  • Detail
  • Special Features
  • Specification

The Fluke 114 is engineered for everyday troubleshooting tasks. Its AutoVolt feature automatically detects and selects AC or DC voltage measurements, simplifying the testing process. The LoZ function helps eliminate false readings caused by ghost voltages, ensuring reliable diagnostics. Its large white LED backlight enhances visibility in dimly lit areas, while the compact design allows for easy one-handed operation. With a 6000-count display and Min/Max/Average recording capabilities, the Fluke 114 is a versatile tool for professionals.

  • True-RMS Measurement: Ensures accurate readings for non-linear loads.

  • AutoVolt: Automatically selects AC or DC voltage measurement.

  • Low Input Impedance (LoZ): Helps prevent false readings due to ghost voltage.

  • Large White LED Backlight: Provides clear visibility in poorly lit areas.

  • Min/Max/Average Recording: Captures signal fluctuations over time.

  • Compact Ergonomic Design: Facilitates easy one-handed operation.

  • CAT III 600 V Safety Rating: Ensures safe operation in high-voltage environments.

Measurement Range / Resolution Accuracy
DC Voltage 600.0 mV to 600.0 V ±(0.5% + 2)
AC Voltage 600.0 mV to 600.0 V ±(1.0% + 3)
DC Current Not applicable -
AC Current Not applicable -
Resistance 600.0 Ω to 40.00 MΩ ±(0.9% + 1)
Capacitance Not applicable -
Frequency Not applicable -
Continuity 600 Ω / 1 Ω Beeper on < 20 Ω, off > 250 Ω
Display 6000 counts, updates 4/sec -
Battery Life 400 hours typical, without backlight -
Safety Rating CAT III 600 V -
Operating Temperature -10°C to +50°C -
Storage Temperature -40°C to +60°C -
Size (H x W x L) 167 x 84 x 46 mm -
Weight 550 g -
